A next-generation industrial robot engineered for high-precision automation across assembly, welding, handling, palletizing, and machine tending.
Designed with advanced servo control and rigid construction, it delivers consistent accuracy, high payload capacity, and 24/7 reliability – all while reducing operational costs and increasing production throughput.

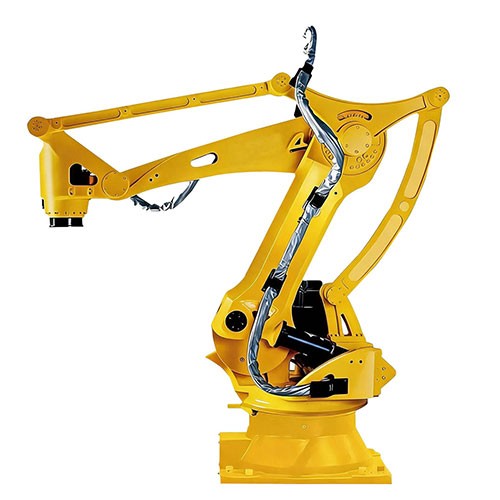

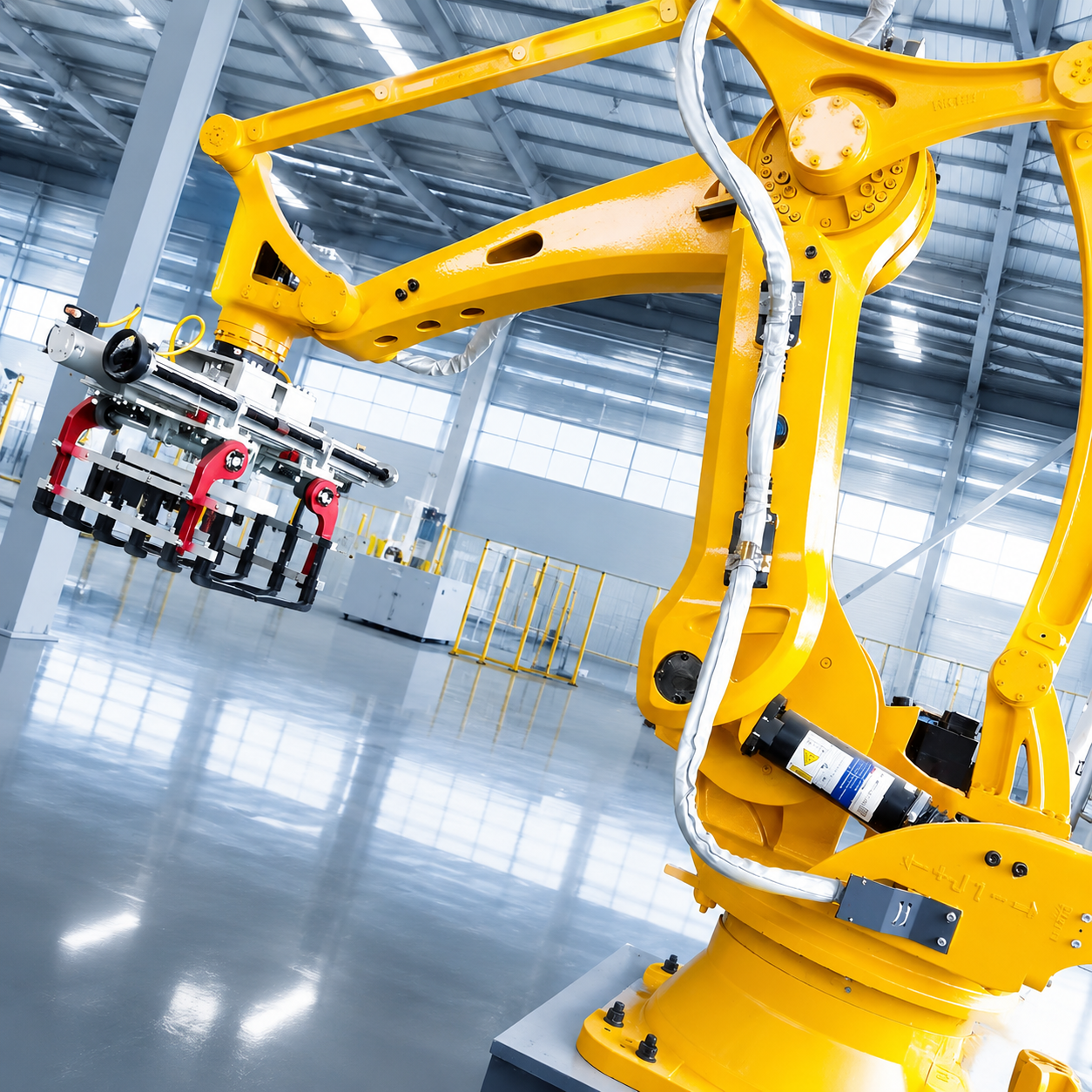

The 4-Axis Industrial Palletizing Robot is a fully automatic, heavy-duty robotic solution designed to automate end-of-line palletizing, handling, loading, and unloading operations. Engineered with a rigid 4-axis articulated arm and a payload range spanning 5kg to 300kg, this industrial palletizer adapts to light carton stacking through to heavy bag, drum, and bulk material palletizing.
Unlike complex 6-axis robots, the 4-axis configuration is purpose-built for palletizing—simpler, faster to program, and less expensive to maintain, while delivering superior speed and stability for stacking applications. Whether you operate in food and beverage, pharmaceuticals, building materials, logistics, or chemical manufacturing, this robotic palletizer delivers consistent, high-speed stacking with minimal human intervention.
– Available in multiple capacity configurations covering light-duty (5–80kg), medium-duty (80–180kg), and heavy-duty (180–300kg) applications. One robot series addresses diverse product weights without over-specifying.
– Four axes of motion (base rotation, horizontal arm, vertical arm, and wrist) provide the optimal balance of speed, stability, and simplicity for palletizing tasks. The 4-axis configuration minimizes cycle times while maintaining precise layer-by-layer stacking.
– Working radius up to 3,200mm enables a single robot to cover multiple production lines, handle long-distance transfers, and achieve high-level pallet stacking. Suitable for large-span workshops and complex layout configurations.
– Achieves ±0.1mm to ±0.5mm repeat positioning accuracy, ensuring consistent, stable pallet loads and minimizing product damage.
– Stacking speeds of 8–12 cycles per minute (standard), with high-speed models reaching up to 2,190 cycles per hour. Significantly increases throughput and reduces production bottlenecks.
– Heavy-duty steel frame with high-rigidity, precision-welded construction, heat-treated to eliminate internal stress. Dust-proof, corrosion-resistant, and high-temperature resistant designs adapt to harsh environments including high dust, high humidity, and chemical exposure.
– Heavy-duty steel frame with high-rigidity, precision-welded construction, heat-treated to eliminate internal stress. Dust-proof, corrosion-resistant, and high-temperature resistant designs adapt to harsh environments including high dust, high humidity, and chemical exposure.
– Supports 7×24 hours continuous high-intensity operation with stable running, low failure rate, and long service life. MTBF up to 8,000 hours
| Specification | Details |
| Robot Type | 4-Axis Articulated Industrial Palletizing Robot |
| Payload Capacity | 5kg – 300kg (model/configurable) |
| Working Radius / Reach | Up to 3,200mm |
| Repeat Positioning Accuracy | ±0.1mm – ±0.5mm |
| Number of Axes | 4 (base rotation, horizontal arm, vertical arm, wrist) |
| Mounting Position | Floor-mounted |
| Protection Rating | IP54 / IP65 (model dependent) |
| Control System | PLC with touchscreen HMI |
| Power Supply | 220V / 380V, 50/60Hz |
| Frame Material | High-strength steel, heat-treated |
| End Effector Compatibility | Vacuum gripper, clamp gripper, fork, custom tooling |
General Processing Factories– Palletizing cartons, cases, bags, bottles, and canned goods
Pharmaceutical – Stacking cartons, blister packs, and medical supply cases
Building Materials – Handling heavy bags (cement, mortar, feed), pipes, and lumber
Chemical Industry – Palletizing drums, pails, and bulk material bags
Logistics Warehousing – Automated palletizing for distribution centers and e-commerce fulfillment
Automotive – Stacking parts, components, and assemblies
Agriculture – Palletizing produce boxes, bagged goods, and containerized products
Photovoltaic / Solar – Handling and palletizing PV components
| Advantage | Benefit |
| Wide Payload Range | 5–300kg covers everything from light cartons to heavy drums |
| 4-Axis Simplicity | Faster to program, easier to maintain than 6-axis robots |
| High Speed | Up to 2,190 cycles/hour – maximizes production throughput |
| Large Coverage | Up to 3,200mm reach – one robot covers multiple lines |
| Built to Last | Heavy-duty steel frame, dust/corrosion resistant, 24/7 operation |
| Precision Stacking | ±0.1mm repeatability ensures stable, uniform pallet loads |
| Fast ROI | Reduces labor costs, increases output, delivers rapid payback |
| Low Maintenance | Simple 4-axis design, high reliability, MTBF 8,000 hours |
The robot series covers payloads from 5kg for light carton applications up to 300kg for heavy bag, drum, and bulk material handling.
Four axes are purpose-built for palletizing—simpler, faster to program, and less expensive to maintain. Palletizing does not require the complex wrist orientation that welding or grinding needs
The working radius extends up to 3,200mm, allowing a single robot to cover multiple production lines and achieve high-level stacking
Yes. The robot supports 7×24 hours continuous high-intensity operation with stable performance, low failure rate, and long service life
