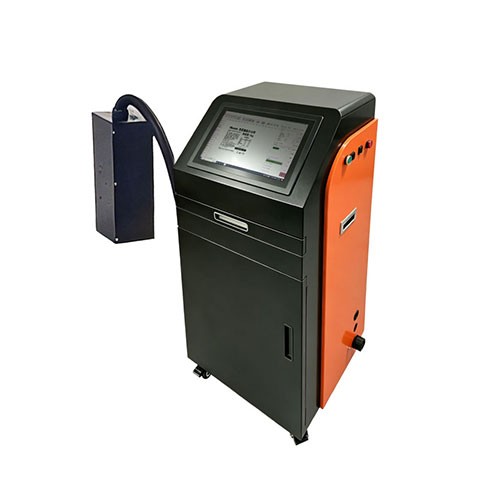

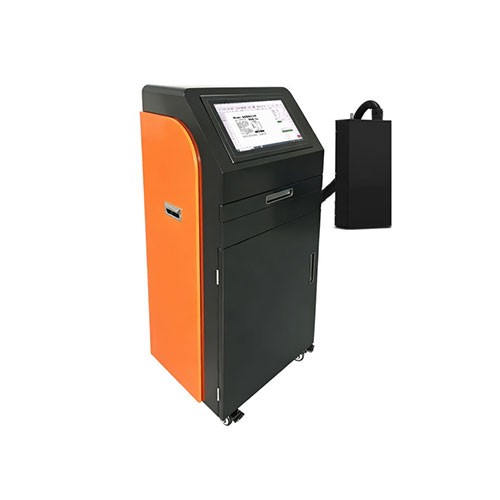

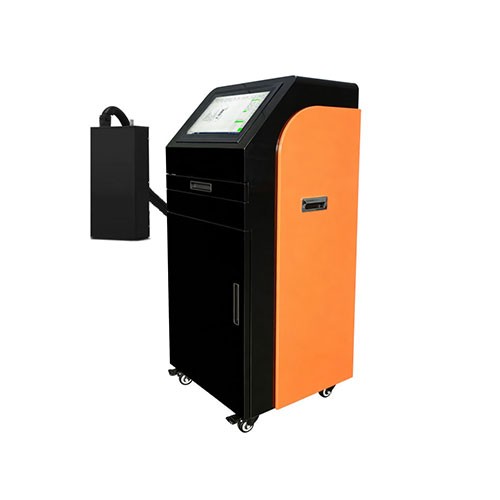

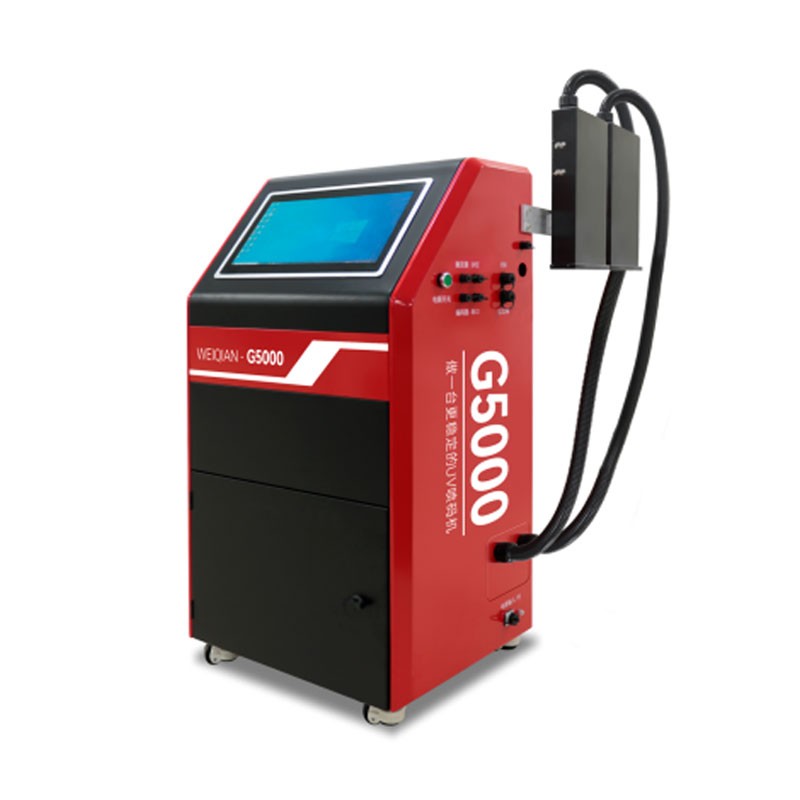

The G5000 Dual-Head CIJ Coding Machine is a high-performance industrial inkjet printer engineered for reliable, high-speed coding and marking on production lines. Equipped with two all-imported industrial piezoelectric printheads and an integrated LED-UV curing system, this system delivers crisp, durable marks on virtually any substrate – from PVC, PET, and copperplate paper to aluminum, ceramics, glass, wood, metal, acrylic, plastic, rubber, and leather.
The G5000 Dual-Head CIJ Coding Machine is a high-performance industrial inkjet printer engineered for reliable, high-speed coding and marking on production lines. Equipped with two all-imported industrial piezoelectric printheads and an integrated LED-UV curing system, this system delivers crisp, durable marks on virtually any substrate – from PVC, PET, and copperplate paper to aluminum, ceramics, glass, wood, metal, acrylic, plastic, rubber, and leather.
With independent trigger functionality for each printhead, the G5000 offers unmatched flexibility for complex production line configurations. Whether you need to print batch numbers, expiration dates, barcodes, QR codes, or complex variable data, the G5000 ensures consistent quality at speeds up to 120 meters per minute.
| Parameter | Specification |
| Model | G5000 Dual-Head Coding Machine |
| Printheads | 2 all-imported industrial piezoelectric printheads |
| Nozzle Material | All steel |
| Nozzle Life | 100 billion ink ejections |
| Nozzle Count | 1,280 per printhead |
| Max. Printing Width | 54.1mm |
| Ink Drop Size | 7~35Pl (variable) |
| Printing Speed | 0 – 120 m/min |
| Printing Distance | 0 – 5mm (best 0 – 3mm) |
| Longitudinal Accuracy | 600 DPI |
| Horizontal Accuracy | 600 – 1200 DPI |
| Ink Channels | 2 channels |
| Movement Mode | Left to right / right to left |
| Negative Pressure | Electronic negative pressure control |
| Printing Direction | Vertical downward; program adjustable for 180° rotation mirror flip |
| Curing Type | LED-UV curing |
| Protection Class | IP54 |
| Housing Material | Q235 steel |
| Storage Temperature | 0°C – 45°C (best 5°C – 40°C) |
| Storage Humidity | 10% – 80% |
| Power Supply | AC220V / 50HZ |
| Power Consumption | Max 200W |
| Machine Weight | Approx. 60kg (net), ~72kg (with carton) |
| Nozzle Assembly Size | 178 × 62 × 400.5mm |

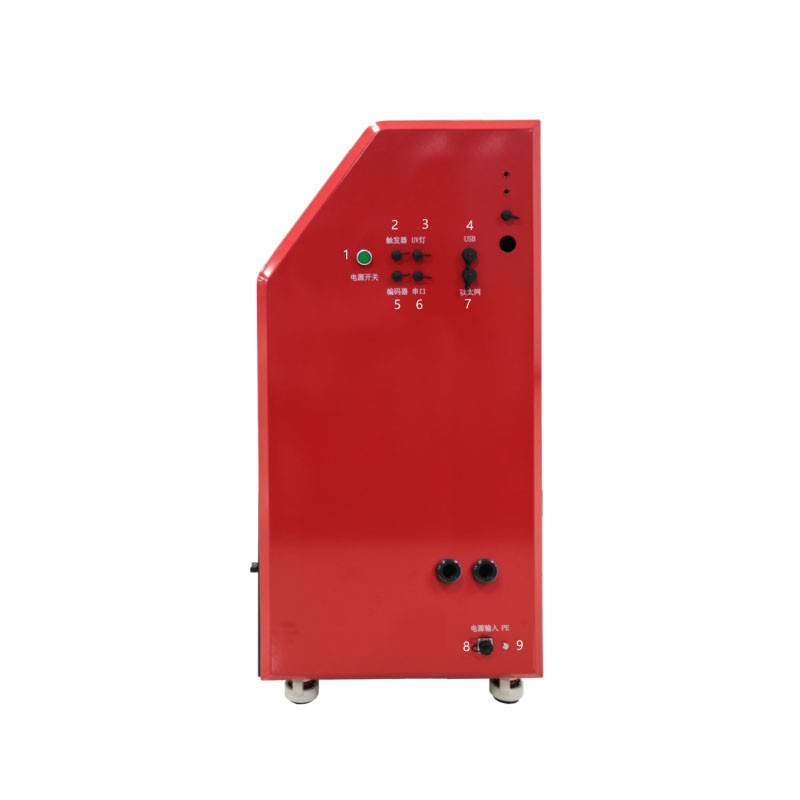

| Interfaces | USB2.0, RS232, Ethernet, Encoder, Trigger, Curing light |
Each printhead can be triggered independently, enabling flexible coding on multiple production lines simultaneously or complex dual-sided marking applications. This significantly improves production efficiency and line integration flexibility.
With 600-1200 DPI resolution and speeds up to 120 m/min, the G5000 delivers sharp, clear codes at production-line speeds. The 54.1mm max print width handles large-format marking with ease. Electronic negative pressure control ensures stable ink flow for consistent print quality.
Industrial-grade all-steel nozzles with a 100-billion-ejection lifespan significantly reduce replacement frequency and maintenance costs, maximizing production uptime.
The integrated LED-UV curing system ensures instant drying and excellent adhesion on a wide range of materials. No drying time means no smudging – perfect for high-speed production environments.
Supports one-dimensional two-dimensional barcodes, QR codes, drug supervision codes, traceability codes, database-driven variable text, images, logos, dates, time, batch numbers, class, and serial numbers. Flexible layout design allows customization of content and print position.
21.5-inch capacitive touch screen with 1920×1080 resolution. Kingsign 3.0 software offers intuitive operation with support for multiple languages. Software provides API for secondary development.
Q235 steel housing with IP54 protection rating ensures reliable operation in demanding industrial conditions. The rugged construction withstands harsh factory environments.
| Material Types | Product Examples |
| Flexible Packaging | PVC, OPP, BOPP, PET, copperplate paper, plastic films |
| Rigid Materials | Aluminum, ceramics, glass, wood, metal sheets, acrylic, rubber, leather, silicone |
| Electronics | PCB boards, mobile phone displays, computer components, chips, batteries |
| Food Beverage | Beverage bottles, food packaging bags, bottle caps, cartons |
| Pharmaceutical | Medicine boxes, drug supervision codes, traceability codes |
| Building Materials | Aluminum alloys, ceramic tiles, glass panels, plastic-steel windows |
| Automotive Machinery | Brake pads, precision parts, motor components, transformers |
Factory-direct pricing with OEM/ODM available
CE certified– compliant with international standards
12-month warranty– with full technical support
1Fast global shipping– reliable delivery worldwide
