High-performance UV inkjet printer designed for industrial coding and marking applications.
It provides high-resolution printing of dates, batch numbers, QR codes, barcodes, and logos on various materials with fast UV curing, excellent adhesion, and stable operation.
The D300-M UV Inkjet Printer (equipped with the Toshiba CF3 printhead) represents a leap forward in industrial coding technology. Designed to solve the pain points of traditional printing, this machine eliminates the need for plate making, reduces material waste, and delivers unparalleled printing flexibility. Whether you are printing on paper, plastic, metal, or glass, the D300-M ensures your products carry sharp, durable, and high-definition codes that withstand the test of time.
No Plate Making, Ready to Print: – With 600-1200 DPI resolution and speeds up to 120 m/min, the W5000 delivers sharp, clear codes at production-line speeds. Electronic negative pressure control ensures stable ink flow for consistent print quality.
Non-Contact Technology: Protects fragile surfaces while achieving high-precision marks on any material.
Cost-Effective Efficient: Lower consumable costs, high-speed drying, and automated operation significantly reduce production expenses.
High Adaptability: – Supports one-dimensional & two-dimensional barcodes, QR codes, drug supervision codes, traceability codes, database-driven variable text, images, logos, dates, time, batch numbers, class, and serial numbers. Flexible layout design allows customization of content and print position
| Parameter | Specification |
| Printhead Type | Full Imported Industrial Piezoelectric Toshiba Printhead |
| Max Physical Resolution | 300 - 600 DPI |
| Max Physical Resolution | 300 - 600 DPI |
| Printing Width | 53.95 mm (Wide format printing without speed loss) |
| Ink Drop Size | 3.5 PL Variable Droplet |
| Printing Speed | 0 - 40 m/min (Standard) / Up to 200 m/min at 600x600 DPI |
| Print Distance | 0 mm - 150 mm |
| Print Direction | 360° Any Direction |
| Printhead Life | 2 Billion Actuations |
600 DPI High Definition: Delivers crystal-clear text and graphics.
Anti-Clogging Design: The oil-based and UV inks contain no solvents, preventing nozzle clogging even after long periods of inactivity.
Wide Format Printing: 54mm width ensures stable high-speed printing regardless of the number of lines or height.
Rich Ink System: A wide variety of ink types and colors are available to suit different substrates and applications.
HD Touchscreen: 13.3-inch industrial-grade all-in-one touchscreen for easy operation.
Flexible Data Input: Supports direct editing, USB upload, and network data transfer.
Visual Software (WFZN): Self-developed software supports various data formats and database printing.
Negative Pressure Ink Supply: ARM core integrated circuit ensures stable ink flow.
Intelligent Alert System: Low ink level alarm to prevent unexpected downtime.
Ink Self-Circulation: Prevents pigment settlement and maintains ink consistency.
Cost Calculation: Built-in function accurately calculates printing costs per job.
System Compatibility: Runs on Windows 10.
Versatile Interfaces: Ethernet, USB, RS232, Curing Lamp, Encoder, and Trigger interfaces.
MES/ERP Integration: Seamless network communication for industrial automation.
One-Click Ink Discharge: Quickly empties the ink path for maintenance or ink changes.
Auto-Cleaning: The system automatically cleans itself to maintain optimal performance.

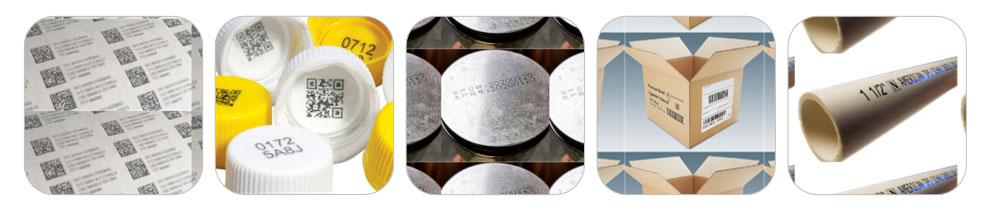

| Material Category | Specific Substrates | Application Insight |
| Packaging Papers | Kraft paper, Coated paper, Cardboard, Corrugated board | Perfect for logistic boxes and retail packaging; ink dries instantly without bleeding. |
| Plastics & Polymers | PE, PP, PET, PVC, ABS, Soft films, Hard shells | Excellent adhesion on both flexible films and rigid injection-molded parts; scratch-resistant after UV curing. |
| Metals & Alloys | Aluminum, Stainless steel, Tinplate, Coated metals | Ideal for durable automotive parts, beverage cans, and electronic housings; ensures long-term traceability. |
| Glass & Ceramics | Bottles, Jars, Tiles, Laboratory containers | High-contrast coding on transparent or glossy surfaces; suitable for cosmetics and pharmaceutical packaging. |
| Wood & Textiles | Plywood, Lumber, Fabrics, Leather, Synthetic fibers | Commonly used in furniture manufacturing and garment labels; maintains clarity on rough or woven textures. |
| Industrial Rubbers | Silicone, EPDM, Natural rubber, Hose pipes | Excellent flexibility for marking curved or expanding components without cracking the code. |
| Composite Materials | Laminates, Fiberglass, Coated panels, Injection-molded engineering plastics | Handles complex surface chemistries with specialized ink formulations to prevent flaking or fading. |
| Feature | Details |
| Operating System | Windows 10 |
| Screen Size | 13.3'' HD Industrial Touch Screen |
| Data Interfaces | Ethernet, USB, RS232, Curing Lamp, Encoder, Trigger |
| Power Supply | AC220V / 50HZ |
| Protection Class | IP54 (Dust & Splash Proof) |
| Operating Temp. | 0 - 40°C |
| Environment | Zero VOC Emissions (Eco-Friendly) |
A: The D300-M uses a non-contact printing method, allowing it to print on almost any surface, including paper, plastics, metals, glass, wood, and curved objects.
A: Our UV and oil-based inks are solvent-free, drastically reducing the risk of clogging. Additionally, the "Auto-Cleaning" and "Self-Circulation" features help maintain the printhead in top condition even during idle periods.
A: Yes. It supports RS232 and Ethernet interfaces and is compatible with ERP and MES systems for centralized data management.
A: The Toshiba printhead is rated for up to 2 billion actuations, ensuring long-term reliability.
