A versatile, non-contact continuous inkjet coding system designed for high-speed, high-quality printing on virtually any surface. Ideal for date codes, batch numbers, barcodes, and logos on products and packaging across food, beverage, pharmaceutical, cosmetic, cable, and industrial parts – delivering clear, durable marks with minimal maintenance and low cost per print.

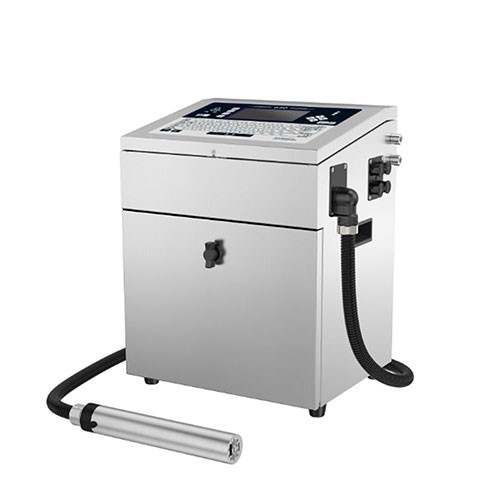

The Fully Automatic Small Character Inkjet Printer is a continuous inkjet (CIJ) coding solution engineered for high-speed industrial production lines. Capable of printing up to 5 lines at speeds reaching 450 m/min, this industrial coder delivers sharp, durable codes on virtually any substrate – plastic, glass, metal, paper, wood, cables, and pipes.
With 360° omnidirectional printing capability and character height adjustable from 1mm to 12mm, this inkjet printer adapts to diverse product shapes and surfaces. The optimal printing distance of 10mm (range: 2–20mm) ensures consistent, high-contrast results across all applications.
High-Speed Performance– Maximum speed of 450 m/min keeps pace with the fastest production lines. Supports 1–5 lines of print with multiple matrix configurations including 5×5, 7×5, 9×7, 12×9, 16×11, 19×14, 24×17, and Chinese 12×12/16×16.
Superior Print Quality– Character height 1–12mm accommodates everything from tiny component codes to large package markings. The 60μm gemstone nozzle with thermostatically controlled printhead ensures precise ink droplet formation and consistent output
360° Omnidirectional Printing – Print in any direction – horizontal, vertical, or angled – without repositioning products.
Intelligent Ink Management – High-performance ink (500ml) and solvent (750ml) cartridge system with anti-clogging alarm minimizes waste and reduces consumable costs. All consumables are chemically compatible with hardware to prevent premature wear.
User-Friendly Operation – WYSIWYG (What You See Is What You Get) Chinese/English interface makes programming intuitive. Stores 68 print messages + 50 logo patterns via SD Card.
Rugged Reliable – IP55-rated stainless steel enclosure ensures dustproof and water-resistant operation in demanding industrial environments. Ultra-quiet design reduces workshop noise pollution. External power supply effectively lowers internal chassis temperature.
Stable Performance – Integrated ink control system automatically adjusts to varying temperatures (0–45°C) and humidity (0–95% RH, non-condensing), maintaining consistent print quality even after long shutdowns
Global Power Compatibility – AC100-240V 50/60Hz, 60VA wide voltage input works in any country without modification.
English and Simplified Chinese
Arabic numerals and serial numbers
Barcodes (1D and 2D)
Automatic dates and batch codes
Logos, patterns, and special fonts
| Specification | Detail |
| Printing Technology | Continuous Inkjet (CIJ) |
| Maximum Print Lines | Up to 5 lines |
| Maximum Print Speed | 450 m/min |
| Character Height | 1 – 12 mm |
| Matrix Configurations | 5×5, 7×5, 9×7, 12×9, 16×11, 19×14, 24×17, Chinese 12×12/16×16 |
| Nozzle | 60μm gemstone nozzle, thermostatically controlled |
| Printing Distance | 2 – 20 mm (Optimal: 10 mm) |
| Printing Direction | 360° omnidirectional |
| Umbilical Length | 3m super-flexible hose |
| Printable Content | English, Chinese, barcodes, serial numbers, automatic dates, logos, patterns |
| Operating Temperature | 0 – 45°C |
| Operating Humidity | 0 – 95% RH, non-condensing |
| Power Requirement | AC100 – 240V, 50/60Hz, 60VA |
| Protection Rating | IP55, stainless steel enclosure |
| Ink Capacity | 500ml |
| Message Storage | 68 print messages + 50 logo patterns (SD Card) |
| Net Weight | 15 kg |
Food Beverage – Expiration dates, batch codes on bottles, cans, pouches
Pharmaceutical – Lot numbers, traceability codes on vials, blister packs
Cable Wire – Continuous marking on electrical wires, cables, pipes
Electronics – Component codes, serial numbers on PCBs and connectors
Building Materials – Date codes on pipes, lumber, and masonry
Automotive – Part identification on metal and plastic components
| Advantage | Benefit |
| Blazing Speed | 450 m/min max – keeps pace with fastest lines |
| Flexible Printing | 5 lines, 1-12mm height, 360° direction, multiple matrix options |
| Precision Engineered | 60μm gemstone nozzle with thermostatic control |
| Low Maintenance | Smart ink system, anti-clogging, easy cartridge swap |
| Built to Last | IP55 stainless steel, 0-45°C operation, global power |
| Easy Operation | WYSIWYG interface, minimal training required |
| Versatile Content | Text, barcodes, dates, logos – all in one machine |
What is the maximum printing speed of this CIJ printer?
The printer reaches a maximum speed of 450 meters per minute, making it suitable for high-speed production lines
What character height range does this printer support?
The character height is adjustable from 1mm to 12mm, accommodating applications from tiny electronic component codes to large package markings
What matrix configurations are available?
The printer supports 5×5, 7×5, 9×7, 12×9, 16×11, 19×14, 24×17, and Chinese 12×12/16×16 dot matrix formats.
Can this printer print in multiple directions?
Yes, the printer supports 360° omnidirectional printing, allowing you to print horizontally, vertically, or at any angle without repositioning products
What types of content can this inkjet coder print?
It prints English, Simplified Chinese, barcodes, serial numbers, automatic dates, logos, patterns, and more – covering virtually all industrial coding needs.
Is the printer suitable for harsh industrial environments?
Yes, with an IP55-rated stainless steel enclosure and 0–45°C operating temperature range, it performs reliably in demanding factory conditions
