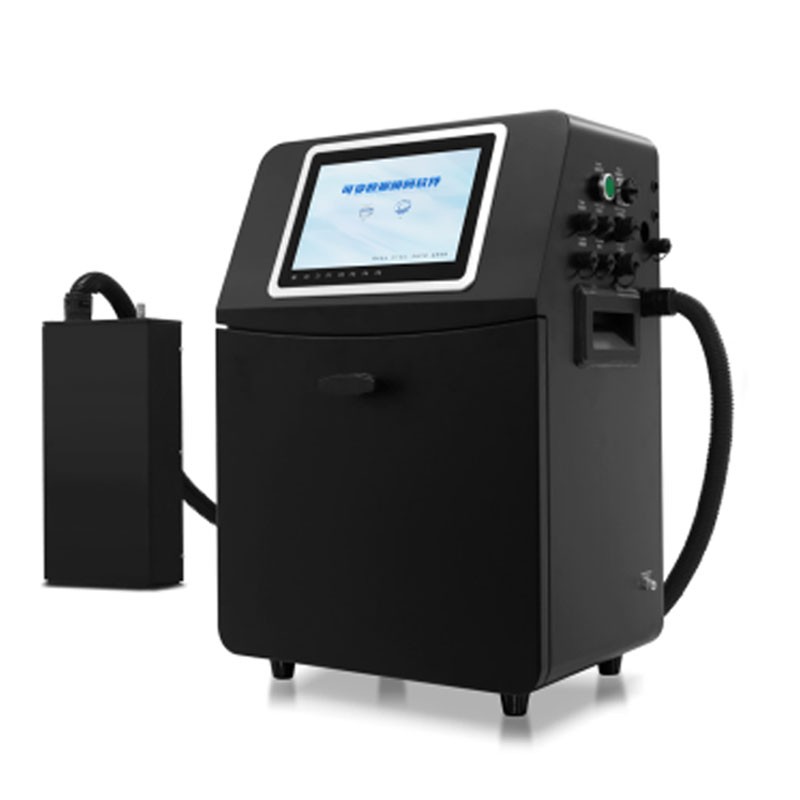

The W5000 CIJ Inkjet Printer is a high-speed, stable continuous inkjet coding machine designed for industrial production line marking. Built for long-term continuous operation, this industrial inkjet printer delivers clear, high-definition coding on various packaging materials, including plastic, glass, metal, film, paper, and rubber. It is widely used for printing production dates, batch numbers, expiration dates, serial numbers, logos, and variable data across multiple industries.
The W5000 CIJ Coding Machine is a high-performance industrial inkjet printer engineered for reliable, high-speed coding and marking on production lines. Equipped with industrial-grade piezoelectric nozzles and an integrated LED-UV curing system, this system delivers crisp, durable marks on virtually any substrate – from cardboard and plastic to metal, glass, and ceramics
Whether you need to print batch numbers, expiration dates, barcodes, QR codes, or complex variable data, the W5000 ensures consistent quality at speeds up to 120 meters per minute. Its LED-UV curing enables instant drying and excellent adhesion, making it the ideal solution for food, beverage, pharmaceutical, electronics, and automotive packaging lines.
| Parameter | Specification |
| Model | W5000 Inkjet Coding Machine |
| Housing | Stainless steel |
| Protection Class | IP54 |
| Nozzle Life | 100 billion ink ejections |
| Printing Speed | 0 – 120 m/min (depends on material, resolution & content) |
| Printing Distance | 0 – 5mm (best 0 – 3mm) |
| Longitudinal Accuracy | 600 DPI |
| Horizontal Accuracy | 600 – 1200 DPI |
| Printing Direction | Forward, reverse, vertical downward; program adjustable for 180° rotation |
| Movement Mode | Left to right / right to left |
| Negative Pressure Control | Electronic negative pressure control |
| Curing Type | LED-UV curing |
| Operating Humidity | 20% – 80% |
| Storage Temperature | 0°C – 50°C (best 5°C – 40°C) |
| Storage Humidity | 10% – 80% |
| Power Supply | AC220V / 50HZ |
| Power Consumption | Max 120W |
| Machine Weight | Approx. 30kg |
| Machine Size | 500 × 330 × 790mm |
| Nozzle Assembly Size | 400 × 129 × 173mm |
– With 600-1200 DPI resolution and speeds up to 120 m/min, the W5000 delivers sharp, clear codes at production-line speeds. Electronic negative pressure control ensures stable ink flow for consistent print quality.
– Industrial-grade nozzles with a 100-billion-ejection lifespan significantly reduce replacement frequency and maintenance costs, maximizing production uptime.
– The integrated LED-UV curing system ensures instant drying and excellent adhesion on a wide range of materials. No drying time means no smudging – perfect for high-speed production environments
– Supports one-dimensional & two-dimensional barcodes, QR codes, drug supervision codes, traceability codes, database-driven variable text, images, logos, dates, time, batch numbers, class, and serial numbers. Flexible layout design allows customization of content and print position
– Adjustable printing direction (forward, reverse, vertical downward) with program-supported 180° rotation and mirror flip. Movement modes include left-to-right and right-to-left for maximum line integration flexibility.
– Built-in font library with font import capability. Supports Pinyin input, handwriting input, and multiple languages. Software provides API for secondary development.
– Stainless steel housing with IP54 protection rating ensures reliable operation in demanding industrial conditions
| Material Types | Product Examples |
| Flat Materials | Aluminum plates, ceramic tiles, glass, wood, metal sheets, acrylic, plastic, leather |
| Packaging | Bags, cartons, woven bags, paper boxes |
| Electronics | PCB circuit boards, chips, mobile phone displays, batteries |
| Food & Beverage | Beverage bottle caps, food packaging bags, beverage bottles |
| Pharmaceutical | Medicine boxes, drug supervision codes, traceability codes |
| Building Materials | Plastic-steel doors & windows, aluminum alloys, gypsum boards |
| Automotive & Industrial | Brake pads, motor components, transformers, steel plates |
