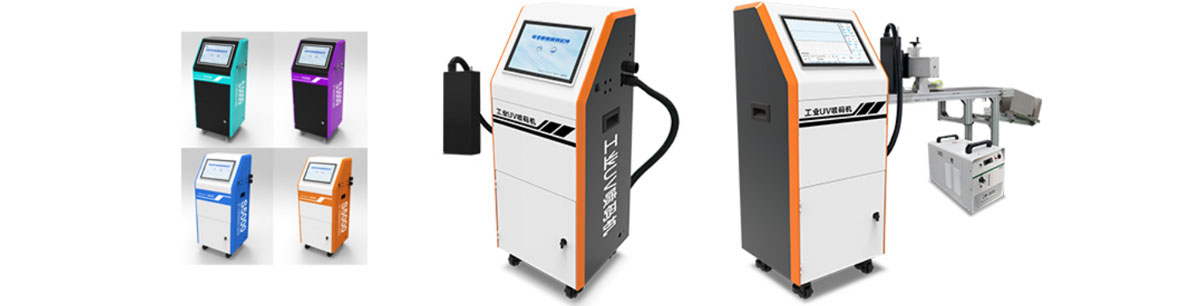

S400UV Series UV Inkjet Printer | Flatbed & Roll-to-Roll for Rigid & Flexible Media

Product Overview

15.6-inch capacitive touch screen, 1.2-meter-high floor cabinet.

Ricoh G4 industrial grade nozzle, equipped with independently developed KING Sign automaticprinting system,The spray printing speed is fast and can adapt to the spray printing needs of thevast majority of scenarios, especially the spray printing of QR codes and barcodes,It is a product that can meet the needs of mass industrial inkjet printing.

Spray nozzle parameters

a) Adopting fully imported Ricoh G4 industrial piezoelectric nozzle, made of all steel material;

b) 1 nozzle, 2 rows of nozzles, 384 nozzles, approximately 0.529mm nozzle column spacing, approximately 0.1693mm nozzle column spacing, 6-8Pl variable ink droplets;

c) 100 billion times of ink output from the nozzle, with a maximum printing width of 32.4mm, a printing distance of omm<5mm (0mm<optimal<3mm), and a printing content length of 2m.

2.Resolution speed

a) 30odpi 0-120 meters/minute (actual printing speed is determined by factors such as material, resolution and content size)

Product Features

a) Industrial Android system, 15.6-inch operating interface (resolution 1366x768px);

b) Intelligent electronic negative pressure ink supply system, capable of changing ink without stopping the machine;

c) Imported industrial piezoelectric nozzle, supporting multi head and splicing expansion;

d) Online variable data printing, supporting non-standard function customization and development;

e) Support Pinyin/handwriting input methods, built-in multiple commonly used font libraries, and support font import function, allowing users to import their own fonts;

f) Shell SPCC cold-rolled steel plate, color customizable;

g) The software provides interface support for secondary development;

h) IP54 protection level, 0-40 °C (optimal 15-35 °C) working temperature, 20-80% working humidity,and good grounding;

g) The software provides interface support for secondary development;

h) IP54 protection level, 0-40 °C (optimal 15-35 °C) working temperature, 20-80% working humidity,  and good grounding;

I) Storage temperature from 0 to 60 °C; 10-80% storage humidity.

Applicable materials/industries/printing content

a) Suitable for flat materials such as aluminum, ceramic tiles, glass, wooden boards, metal sheets, acrylic boards, plastics, leather, as well as product materials such as bags and paper boxes;

b) Suitable for mobile phone display screens, beverage bottle caps, food packaging bags, medicine boxes,plastic steel doors and windows, aluminum alloys, batteries, plastic pipes, steel plates, circuit boards,chips Woven bags, eggs, brake pads, mobile phone case cardboard boxes, motors, transformers, watermeter inner discs, gypsum boards, PCB circuit boards, outer packaging and other products;

c) The system supports printing one-dimensional barcode, two-dimensional barcode, drug supervisioncode, traceability code, database, variable text, image, logo, date, time, batch number Class and serialnumber, etc. And it can flexibly design the layout, content, and printing position.
